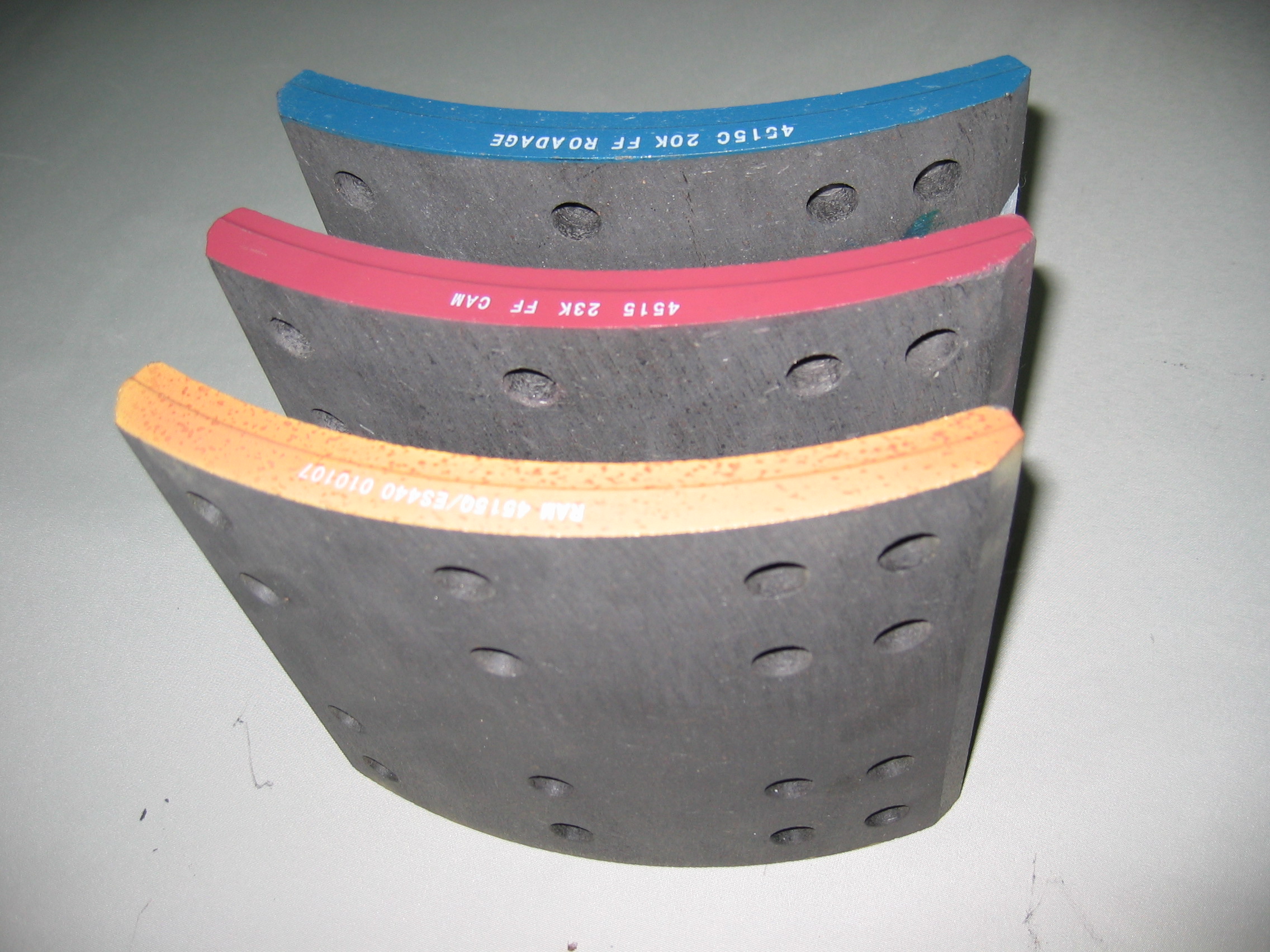

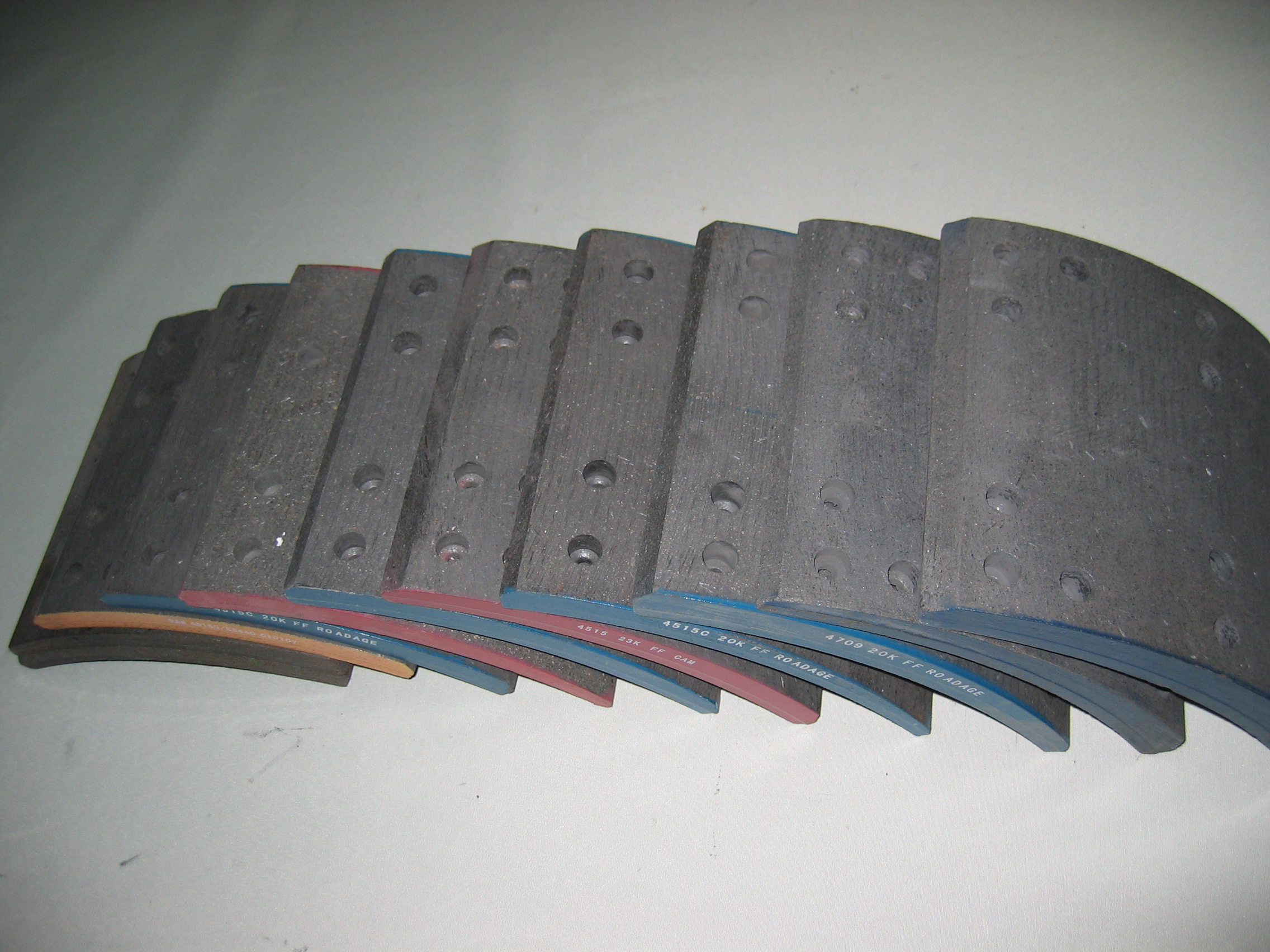

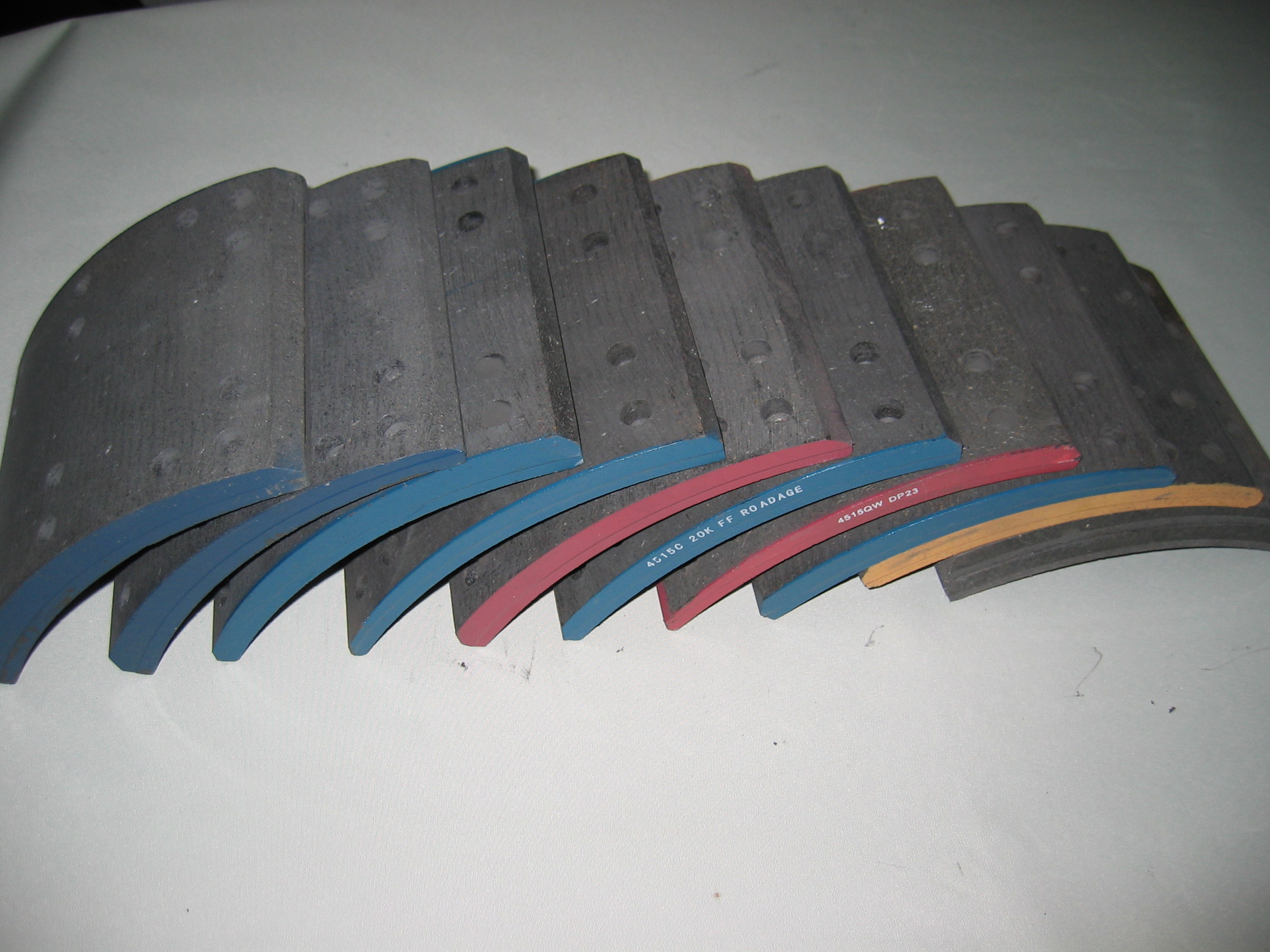

Brake pads

Basic Info:

Material: Non-Asbestos

Drum brakes Classification: Brake shoe

Origin: China

HS code: 87083010

Packing: 4 pieces per sealed ploy bag, 2 or 4 sets per carton box on usual. Can be packed as per your requirement

MOQ: 2000 pcs

Delivery time: 25-60 days as per order quantity

Delivery port: FOSHAN/ QINGDAO port

Production capacity: 1000000 pieces per month


product details
Description:

Material: Asbestos; Semi-metallic; Non-asbestos; Ceramic etc.

Material span life: Asbestos: 30000 to 40000 kilometers

Non-asbestos: 70000 to 80000 kilometers

Ceramic: 100000 kilometers up

Certification: TUV, ISO/TS 16949, ISO9001


Features:

1. Good heat dissipation

2. Do not damage the drum

3. Low noise

4. High temperature resistant

5. Environment-friendly

Test result:

Inspection Item Test Result
NormalTemperature Friction Coefficient(100-150ºC) 0.42±0.02
Hot Friction Coefficient(250ºC-300ºC) 0.42±0.01
Wear Rate(×10-7m3/Nm150ºC) 0.26-0.53
Density(g/cm3) 2.02
Impact Force(J/cm2) 0.46
Los's strength(HRM) 51
Shear strength in(MPa) 20.52
Compression strength(N/mm2) 84.49
Thermal Expansivity/% 0.89
